305 SBC Upgrades: From Underdog To Street Performer
The Forgotten Chevy Small-Block
Ask most Chevy enthusiasts about small-blocks, and the 350 or 383 stroker usually steals the spotlight. The 305 SBC, meanwhile, is often written off as a smog-era compromise. With its 3.736-inch bore and restrictive heads, it was never designed to be a horsepower monster. From the factory, most 305s put out between 145 and 230 horsepower, which felt underwhelming compared to other small-block options.
Because of that reputation, many 305s were yanked from cars and trucks and left behind in junkyards. But that stigma is actually part of the appeal today. The 305 is cheap, widely available, and often overlooked, which makes it the perfect platform for budget-minded builders who want to put together a fun street motor or compete in dirt track classes where rules keep displacement limited. With the right upgrades, focused on the basics of air, fuel, and spark, the 305 can be transformed from throwaway iron into a lively small-block.
Carburetors: Feeding the 305 the Right Way
Most 305s came with restrictive 2-barrel carbs aimed at fuel economy. Swapping to a performance 4-barrel immediately changes how the engine feels. Since a 305 at 6,000 rpm only demands about 500 CFM, the sweet spot is a 600 to 650 CFM carburetor. This gives enough headroom without bogging the engine down at part throttle.
The Holley 4150 double-pumper is a performance favorite. With mechanical secondaries, it delivers crisp throttle response and full tunability for racers or hot rodders willing to dial it in. The Holley 4160 vacuum-secondary version offers smoother street manners and is more forgiving on smaller-displacement engines like the 305. For a simple and reliable option, the Edelbrock 1406 Performer Series 600 CFM carburetor is a bolt-on solution with electric choke and easy tuning via metering rods.
For circle track racers, rules often specify a 500 CFM Holley 4412 two-barrel. The Holley 0-4412CT is a race-ready version designed specifically for IMCA and other grassroots classes.
Why it matters: The right carb keeps airflow velocity strong, ensures good atomization, and balances drivability with performance. Oversize the carb and you lose throttle response; undersize it and you choke off horsepower. For a 305 SBC street engine, the 600 to 650 CFM range provides crisp response and enough flow for mild cam and head upgrades.
Tuning tip: On a Holley 4150 or 4160, swapping jets, accelerator pump cams, or adjusting the vacuum secondary spring makes a noticeable difference in how a 305 responds. For Edelbrock carbs, a metering rod and jet kit gives you a straightforward way to dial in mixtures for street or track conditions.
Intake Manifolds: Better Airflow, Cooler Charge

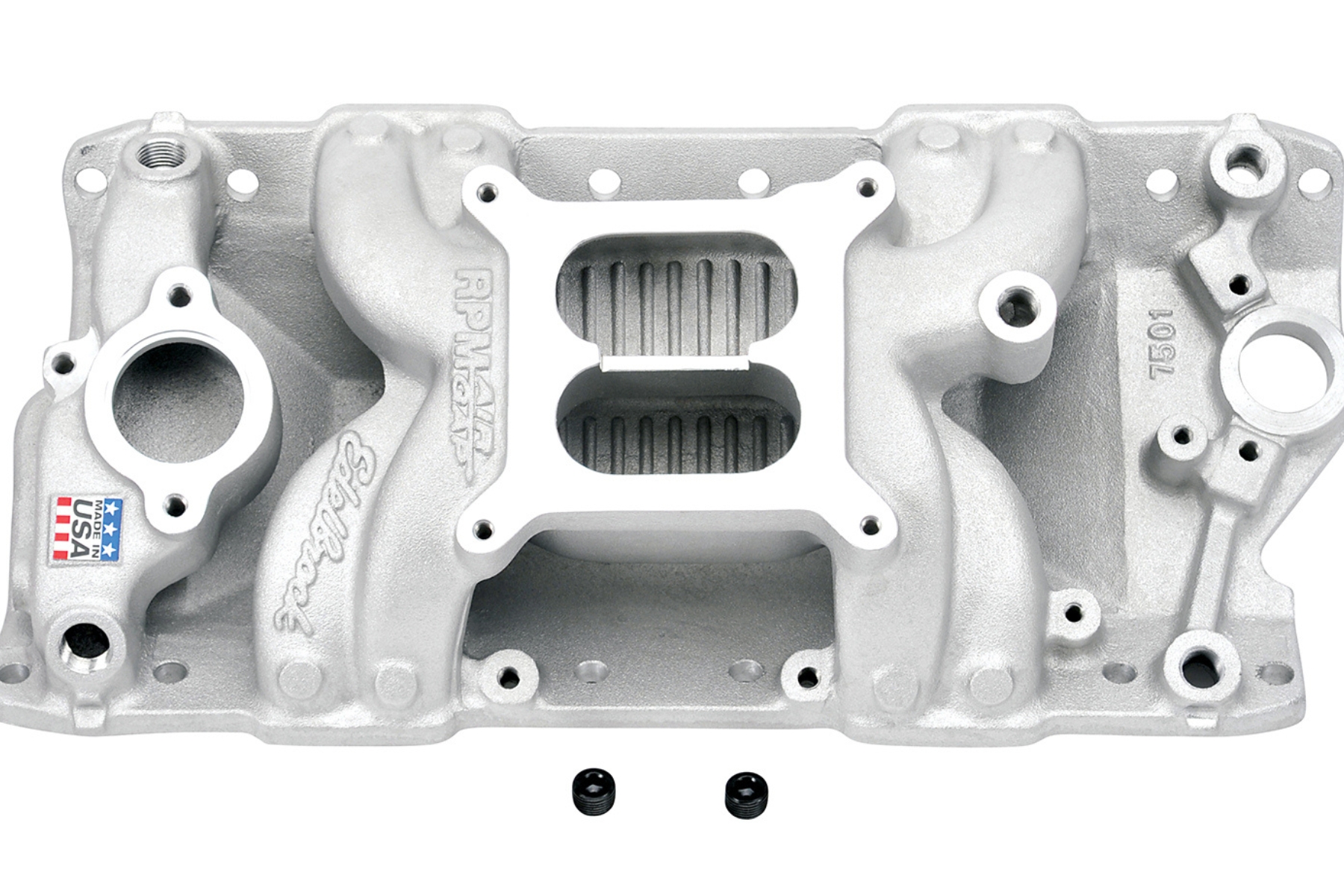

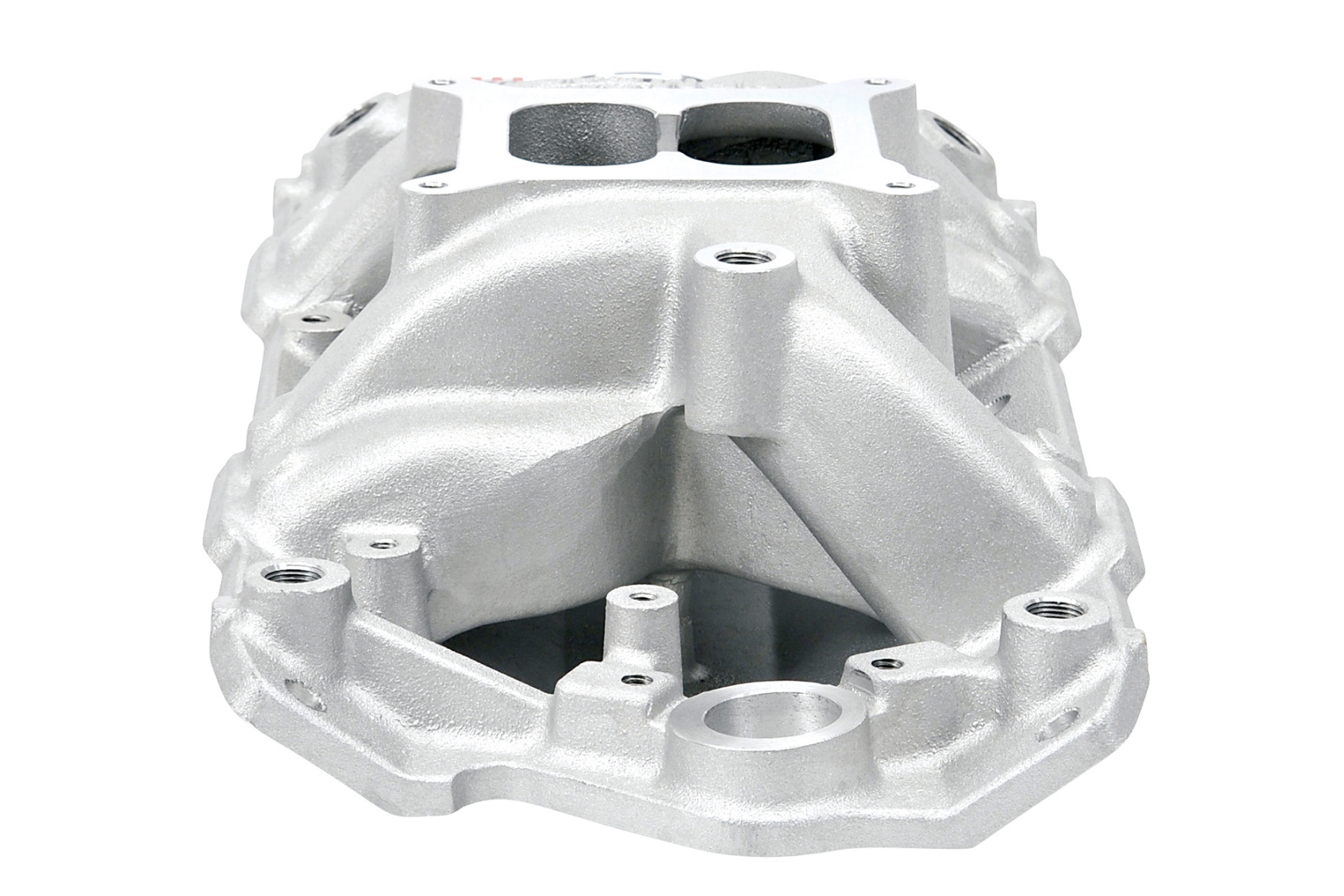

Pairing a carb with a quality intake is the next step. A dual-plane, mid-rise intake helps maximize velocity while improving distribution. The Edelbrock Performer RPM Air-Gap is one of the best choices for the 305. Its raised runners keep heat away from the mixture, resulting in a denser charge and more efficient combustion. Operating between 1,500 and 6,500 rpm, it is perfectly matched for a street or dirt track 305.
Small-bore engines like the 305 thrive on velocity. The Air-Gap improves throttle response and mid-range torque, which is where these engines spend most of their time. On a streetcar, this translates to more usable power when pulling away from a stoplight. On dirt, it means harder corner exits without needing to rev the motor excessively.
Headers: Letting It Breathe Out
If an engine is an air pump, what goes in must come out. Factory manifolds are a huge choke point. Swapping to long-tube headers instantly improves scavenging and horsepower.
Hooker Competition Headers are a popular choice, featuring mandrel-bent tubing, long collectors, and thick flanges for durability. Hedman Headers offer long-tube and mid-length options with ceramic coatings and a unique ball-and-socket collector seal that helps prevent leaks. For a budget-friendly option, Flowtech Headers deliver solid performance with mandrel bends and a 3-inch collector.
Why it matters: Long-tube headers help the 305 pull harder across the entire powerband, not just at peak rpm. By improving exhaust scavenging, they draw more fresh air and fuel into the cylinder, which sharpens throttle response and builds torque. On a small-displacement engine, that improved efficiency makes a noticeable difference in drivability and fun factor.
Ignition: Stronger Spark, Better Control
Once air and fuel are optimized, spark becomes the next key. Weak ignition setups can leave horsepower on the table. Upgrading the distributor and plug wires makes a huge difference.
The MSD Street Fire HEI Distributor offers consistent spark control and reliability without breaking the bank. Pair it with MSD 8.5mm Super Conductor wires or Taylor Spiro-Pro wires for minimal resistance and reliable fire to each cylinder.
Why it matters: A strong spark ensures complete combustion, which improves throttle response, efficiency, and top-end stability. For a motor that is being pushed harder than stock, ignition is the insurance policy against lost power. On a street-driven 305, this means fewer misfires, cleaner idle, and more consistent performance.
Tuning tip: Pay attention to plug heat ranges. A slightly colder plug is often a smart move when running higher compression or more aggressive timing. Also, fine-tuning total timing to around 34 to 36 degrees, with all advance in by 2,800 to 3,000 rpm, tends to wake up small-blocks like the 305.
Camshaft: Waking Up the 305’s Personality
The camshaft is often called the heart of the engine, and for the 305 SBC, it is the upgrade that changes everything. The Summit Racing SUM-K1103 cam is an excellent budget-friendly choice. With .442/.465-inch lift and 214/224 degrees of duration at .050, it is about the biggest grind you can run in a stock-style 305 without needing a higher-stall torque converter.
This cam broadens the torque curve and gives the 305 a noticeable lope at idle without killing drivability. It pairs beautifully with a 600 to 650 CFM carb, dual-plane intake, and headers, creating a well-rounded street setup.
Why it matters: The stock camshafts in 305s were designed for emissions and economy. Swapping to a performance grind instantly changes how the engine revs and pulls. On the street, this cam keeps drivability intact while unlocking the mid-range punch that makes a small-block fun. For dirt track racers, the broader torque curve helps dig out of corners without bogging.
Heads and Overbore: The Next Step
If the budget allows, the biggest performance leap for a 305 comes from the cylinder heads. Stock 305 SBC heads are airflow-limited, but aftermarket options unlock real horsepower.
A perfect fit is the Edelbrock E-Street 185cc aluminum cylinder head (P/N 61019). These heads feature 185cc intake runners, 2.02/1.60-inch valves, and most importantly, a 60cc combustion chamber. That chamber size is right in the sweet spot for a 305, keeping compression where it needs to be for efficiency and torque. Many aftermarket heads with larger chambers are designed around 350 or 383 builds, and on a 305 they drop compression too low. The E-Street design maintains street-friendly compression while flowing significantly better than any stock 305 casting.
Pairing these heads with a mild overbore, usually .030 to .040 inches, freshens the cylinders, bumps displacement slightly, and can help accommodate larger valves. While an overbore will not turn a 305 into a 350, it maximizes the platform and ensures you are not leaving power on the table. Together, the E-Street heads and a fresh bore transform the 305 into a more responsive engine with improved top-end power and efficiency.
Compression considerations: A stock 305 with 58 to 60cc heads and flat-top pistons typically lands around 9.0 to 9.3:1 compression. That is perfect for pump gas and street use. If you move to larger chamber heads, compression can fall into the low 8s, which hurts power. That is why the Edelbrock E-Street 60cc chamber design is such a smart match for the smaller bore.
Making the Most of the Overlooked 305
The Chevy 305 may have been dismissed for decades, but that works in your favor today. These engines are cheap, plentiful, and often ignored by those chasing bigger cubes. By focusing on the fundamentals, air in, air out, and spark, and using proven parts like a Holley or Edelbrock carb, an Edelbrock Air-Gap intake, long-tube headers, a strong MSD distributor, and a Summit Racing camshaft, the 305 SBC can easily move into the 250 to 300 horsepower range. Add a set of Edelbrock E-Street heads and a mild overbore, and you are looking at a genuinely fun small-block that makes the most of its displacement.
For budget street builds or grassroots dirt track cars, the 305 SBC proves that underdogs deserve a second look. Instead of tossing it aside, take advantage of its availability and low cost, and turn it into a respectable street engine that surprises people who still think it is not worth building.
